The mechanics of the overdrive unit: how it works and how to fix it

The switch is not doing the hard work

There is a particular pleasure in pressing the overdrive switch at motorway speed and feeling the engine settle into a quieter, longer legged stride. It feels like the car has found another gear hiding behind the gearbox, which is close enough to the truth for the driver. Underneath, though, the work is being done by a compact mechanical device full of oil, springs, cones and gears rather than by a little electrical miracle. That distinction matters the moment it stops working. A dead switch is inconvenient. A worn cone clutch or a lazy hydraulic pump is a different conversation entirely.

Laycock de Normanville units appeared behind gearboxes in a remarkable range of British and European classics, but there is no single universal Laycock. The early A type, later compact A type, J type and other versions differ in ratios, hydraulics, permitted gears and service details. This article uses the well documented A type to show the basic arrangement, then explains why the J type needs a different diagnosis. Before buying oil, adjusting a linkage or reading a pressure number on the internet, identify the exact unit and follow the workshop information for your car. The gearbox inhibitor switches are part of that system, allowing overdrive only in the intended forward gears. They are not surplus wiring installed to give future owners something to curse at.

Four gears explain nearly everything

At the heart of the unit sits an epicyclic gear train, better known as a planetary gear set. It contains a central sun gear, several smaller planet gears, their carrier and an outer ring gear called the annulus. The gearbox mainshaft drives the planet carrier. The annulus is connected to the output, so it eventually drives the propshaft. That is the complete cast for the clever bit, although the parts are asked to perform a surprisingly convincing piece of mechanical theatre.

In direct drive, the sun gear is locked to the annulus. The planet gears cannot spin on their own axes, so the carrier and annulus turn together at the same

speed. Select overdrive and the sliding clutch instead holds the sun gear against a fixed brake ring. Now the planet gears must walk around the stationary sun and drive the annulus faster than the carrier. A Triumph A type example gives roughly a 1.22:1 output speed increase, which leaves the engine at about 82 per cent of its direct drive speed for the same road speed. The illustrated TR6 J type is roughly 1.25:1, or about 80 per cent. Those figures describe those versions, not every Laycock fitted to every classic.

The cones and rollers prevent the drama

The ratio change is managed by a sliding cone clutch. In its rearward position, its inner friction surface grips the annulus and couples the sun to it for direct drive. Hydraulic operating pistons pull the clutch forward when overdrive is selected, so its outer friction surface grips the fixed brake ring and holds the sun still. Release springs push the assembly back again when pressure is removed. It is a compact answer to a difficult question: how do you select two entirely different states of an epicyclic gear train without asking the driver to operate a second gear lever while overtaking a lorry?

There is also a one way roller clutch, which is much more important than its modest appearance suggests. In normal forward direct drive, it transmits torque while the cone clutch changes position, preventing a wild free rev between the two states. When the annulus becomes faster in overdrive, the roller clutch releases as it should. The sliding clutch is still needed for engine braking and reverse, because the roller clutch does not perform the same job in those conditions. This is also why a Laycock overdrive must never be allowed to engage in reverse. The epicyclic train tries to force an overspeed in the opposite direction while the roller clutch resists it, and something expensive can lose the argument.

A type: pressure waiting in the wings

The A type’s hydraulic system is admirably literal. A cam on the rotating mainshaft works a small reciprocating pump. The pump draws the gearbox oil through a filter, passes it through a non return valve and charges a spring loaded accumulator. In other words, while the car is moving it is quietly storing oil under pressure, ready to move the clutch quickly when asked. The same oil does the hydraulic work and lubricates the unit, which is one reason correct level, cleanliness and the vehicle maker’s specified lubricant are all vital.

The dashboard switch does not electrically engage the gear train. It energises a solenoid, which moves the operating valve. On an A type, that valve releases accumulator pressure to two operating pistons. The pistons pull the cone clutch into its overdrive position, and the pump quickly restores pressure after the initial discharge. When the solenoid releases, the valve shuts off the accumulator and allows the piston circuit to vent in a controlled fashion, letting the return springs restore direct drive. The A type solenoid itself has a high current pull in winding and a lower current holding winding. If it clicks but fails to complete its stroke, do not assume that the gears are the culprit.

J type: same gears, different manners

The J type still uses the carrier, sun, annulus, cone clutch and one way clutch arrangement, but its hydraulic strategy is different enough to punish guesswork. In direct drive, its relief valve is set very low, at about 20 psi in the illustrated TR6 arrangement. Selecting overdrive directs pump oil into a dashpot, which progressively raises the relief setting until pressure is high enough to move the operating pistons. The documented figure of roughly 450 psi belongs to that specific arrangement and is not a substitute for the figures in your own manual.

That dashpot is why a J type often feels more deliberate than an A type. A small control orifice slows the dashpot’s movement, softening both engagement and release rather than allowing the unit to arrive like a kicked door. The J type solenoid incorporates the operating valve and its electrical circuit differs too. On the TR6 example it is enabled only in third and fourth. The practical lesson is simple: the shared epicyclic principle makes the units cousins, not twins. Never transfer an A type pressure test, adjustment, solenoid setting or parts list onto a J type.

Begin with the boring checks

Most sensible fault finding starts above the overdrive, not inside it. Confirm that the unit has the correct oil level and that the oil is neither visibly contaminated nor escaping through an obvious leak. Then, with the ignition on and the gearbox in a gear permitted for overdrive on that car, operate the switch and listen for the solenoid. An A type should produce a definite mechanical clunk, quite separate from the faint relay click. No solenoid action makes an electrical fault, poor connection, relay, switch, inhibitor switch or solenoid itself more likely than an internal overdrive catastrophe.

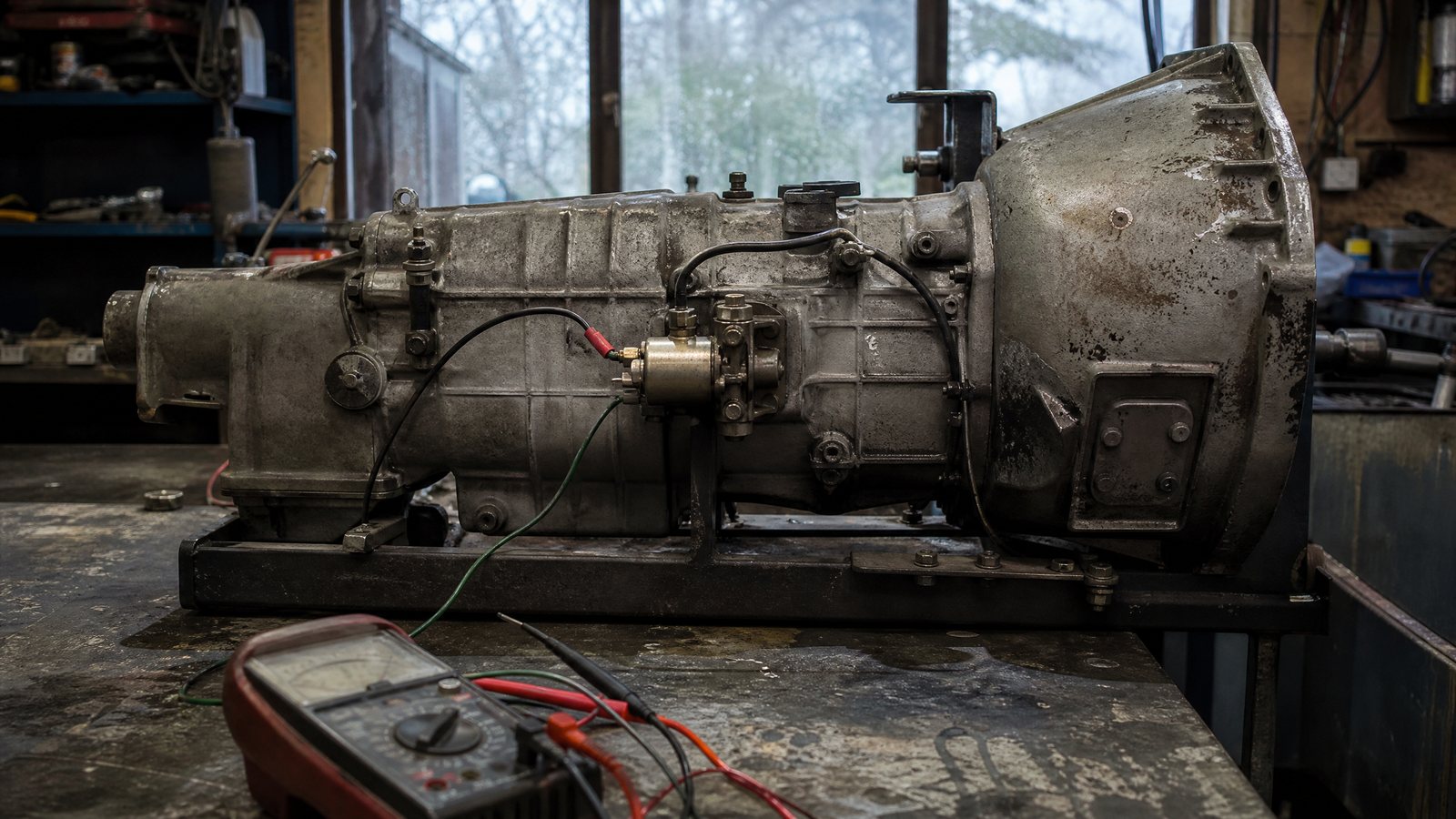

If the solenoid works, check that it releases as well. An overdrive that remains selected must not be reversed until the cause is understood. Corroded bullet connectors, tired earth connections and an inhibitor switch that no longer makes contact are common enough to justify a careful electrical inspection before anything comes apart. A multimeter and a wiring diagram for the exact car are more useful here than a heroic attitude. On A type systems, the solenoid needs a brief high current pull in action before it settles onto its lower current hold circuit, so a unit can sometimes look electrically alive without completing the movement needed to lift the valve.

Read the symptom before reaching for a spanner

A solenoid that moves but produces no overdrive points next towards valve travel, hydraulic pressure or inadequate oil supply. On the A type, a pressure test can separate these possibilities, but it is not a casual driveway exercise. In the Triumph material, pressure that fails to drop when overdrive is commanded suggests that the operating valve is not being moved as intended. Low pressure in both direct drive and overdrive moves suspicion towards the pump, accumulator or non return valve. The precise numbers and test procedure remain type specific, so a gauge result is evidence, not a universal verdict.

Overdrive that engages then slips under throttle is telling you that the cone clutch is not being held firmly enough, or that its lining is worn or damaged. Very low hydraulic pressure is the first suspect. If pressure is sound for the relevant unit, the internal clutch surfaces deserve professional attention. Slip in forward direct drive tells a different story, because the one way roller clutch should be carrying the load there. An overdrive that refuses to release can be caused by a blocked vent path in the operating valve circuit, incorrect adjustment or weak return springs. Grinding, a rising whine or metallic debris means the investigation has ended and the strip down has begun.

Repair with restraint

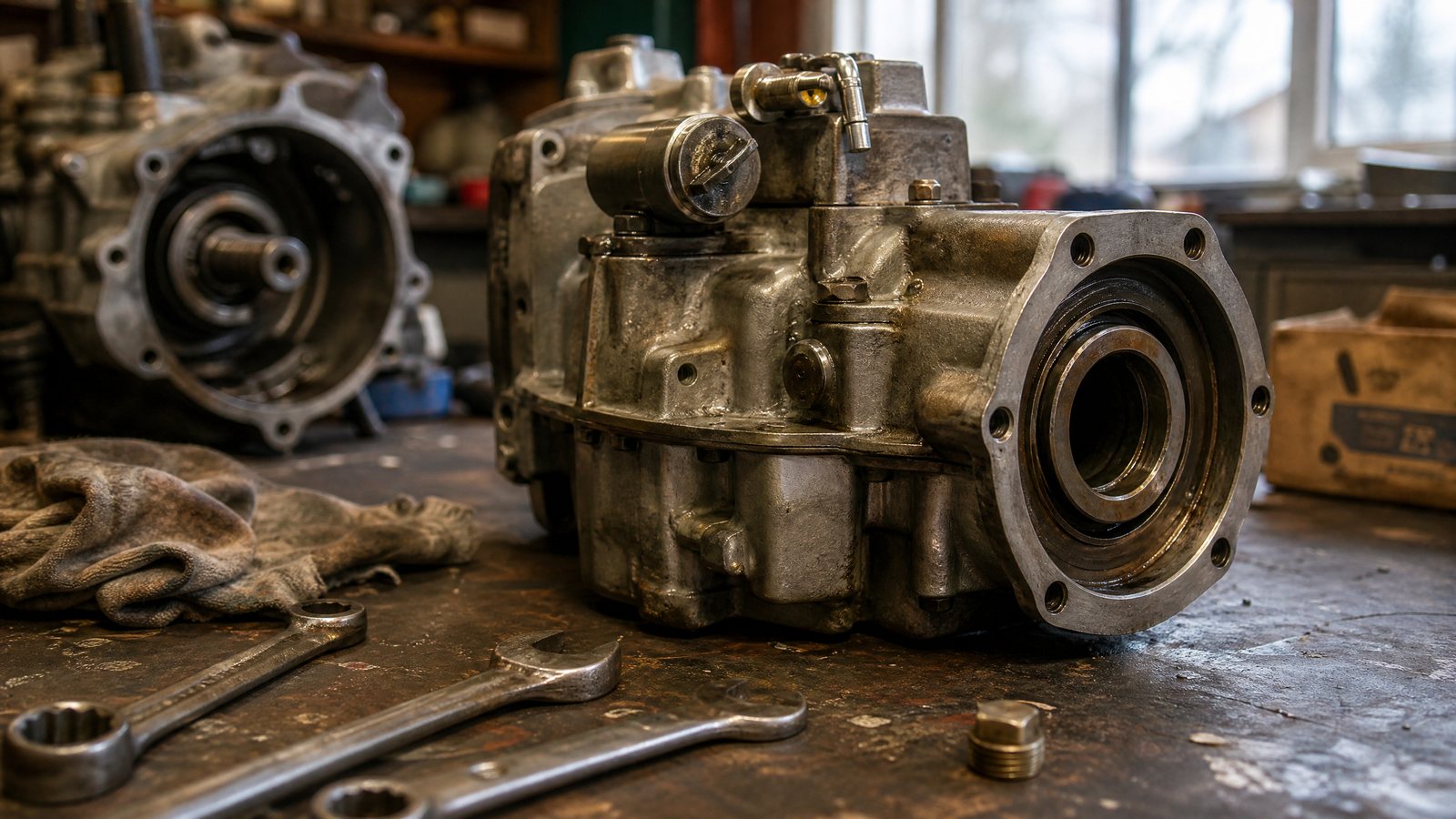

There are useful jobs for a careful owner. Cleaning and securing electrical terminals, confirming solenoid movement, checking the correct lubricant and inspecting external wiring can cure a surprising number of supposed overdrive failures. So can leaving the inhibitor system intact. Bypassing it may make a tired switch seem irrelevant until the unit is accidentally selected in the wrong gear or reverse. The generous supply of confidence offered by a new toggle switch does not change the laws of epicyclic gearing.

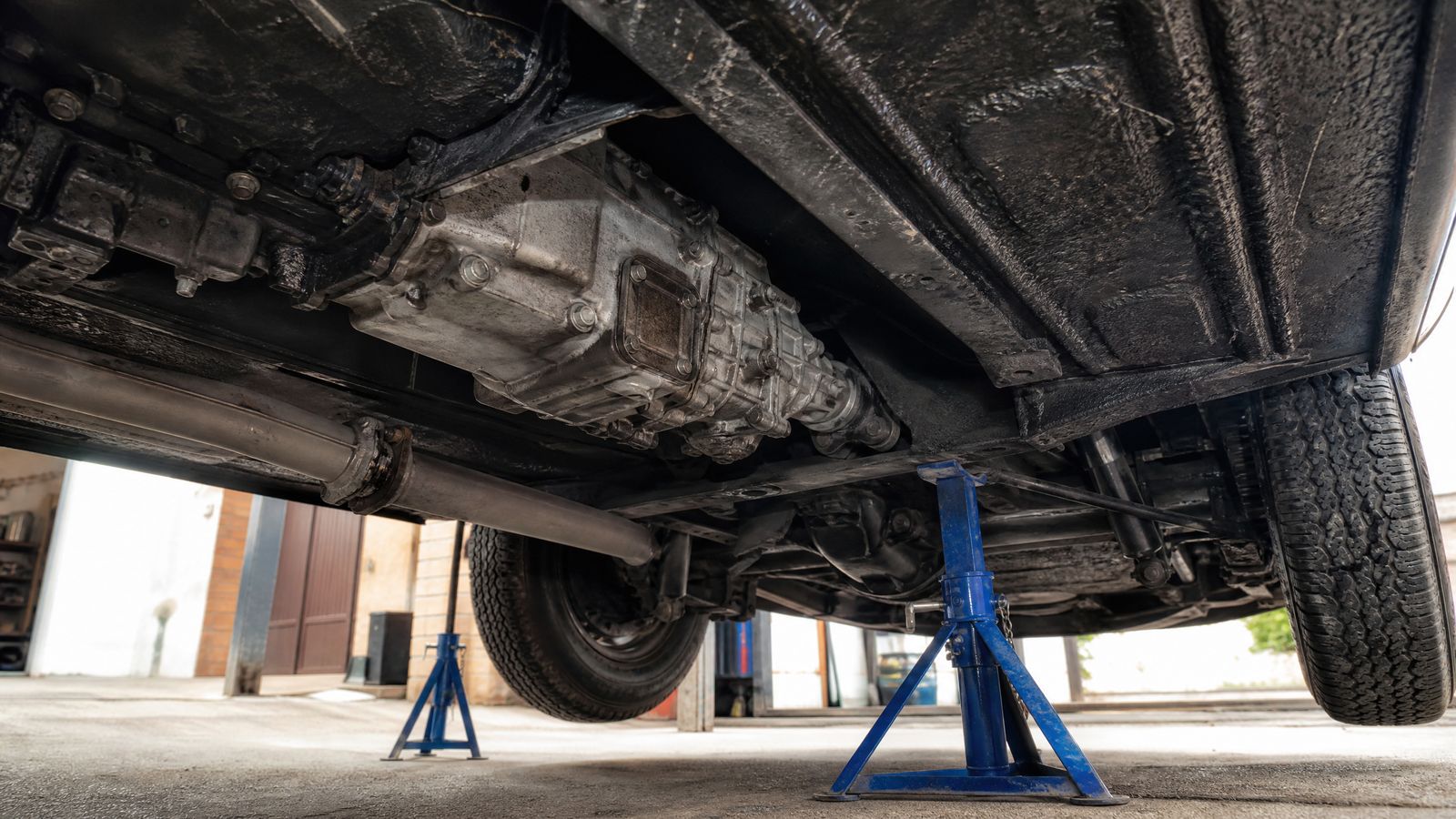

Safety note: An overdrive stores hydraulic pressure. Pressure testing, opening the hydraulic circuit, running the transmission with wheels free of the ground and internal work all require the correct workshop manual, secure support and proper equipment. If there is any doubt, use an overdrive specialist.

The repair that lasts starts with diagnosis rather than parts darts. Establish the exact Laycock type, verify the electrical command, verify oil level and condition, then test the hydraulic system only by the book. The durable unit is not mysterious at all. It is an epicyclic gearbox shifted by carefully managed oil pressure, and it rewards the owner who respects both halves of that sentence. Get those details right and that small switch becomes what it always promised to be: a civilised extra stride between a good classic and the open road.
